PhoenixAM provides glass frit perfect for electrodes of solar cell.
Glass frit for electrodes is the core material that resists low contact, promotes sintering of silver power, and forms adhesion between bus bar and wafer.Also, it is as effective as in the wider range of calcination.
Solar Cell

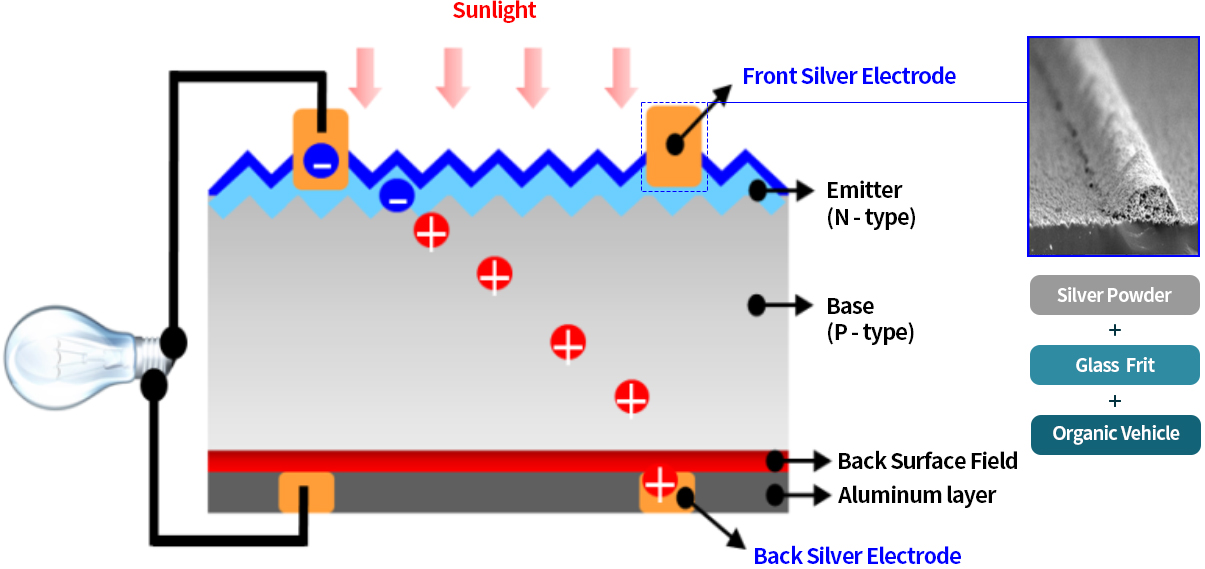

Structure and broad electrode

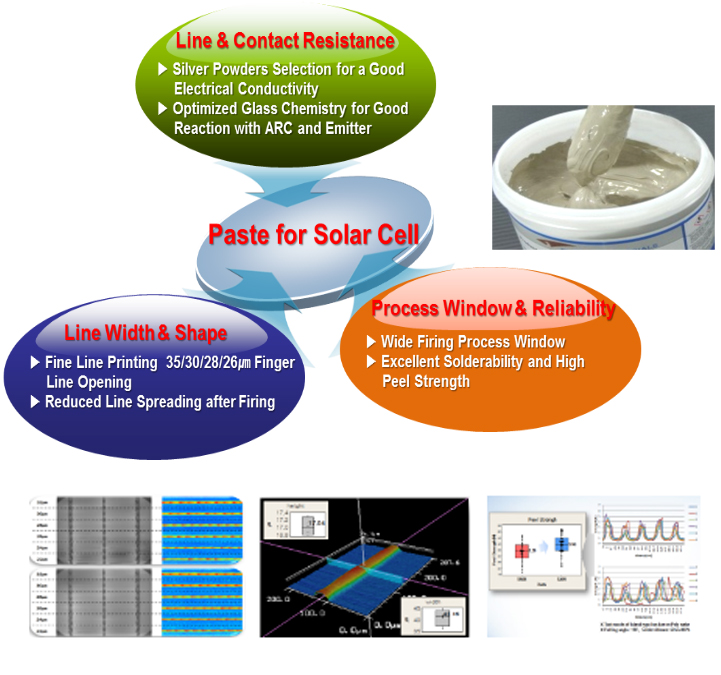

Broad solar cell after printing
-
-
- ※ Requirements of glass frit
- - Grants ARC(SiNx) etching and contact function
- - Promotes silver power sintering
- - Forms adhesion between bus bar and wafer
Glass Frit product specification
| Product No. |
Glass System | Properties | Firing Process | ||||
|---|---|---|---|---|---|---|---|
| Tg (℃) |
Tp (℃) |
CTE (x107-/K) |
Density (g/cm3) |
Temp. (℃) |
Time (min) |
||
| Mono-GSP | PbO-TeO2-Bi2O3 | 260 | 527 | 155 | 5~6 | 750~780 | Fast |
| Multi-GSB | TeO2-Bi2O3-ZnO | 295 | 515 | 188 | 5~6 | 750~780 | Fast |
