Phoenix AM provides glass frit perfect for vacuum glass.
We secure the low calcination temperature for vacuum glass, similar coefficient of expansion as glass substrate, and calcination density to maintain the degree of vacuum.Glass Frit for Vacuum

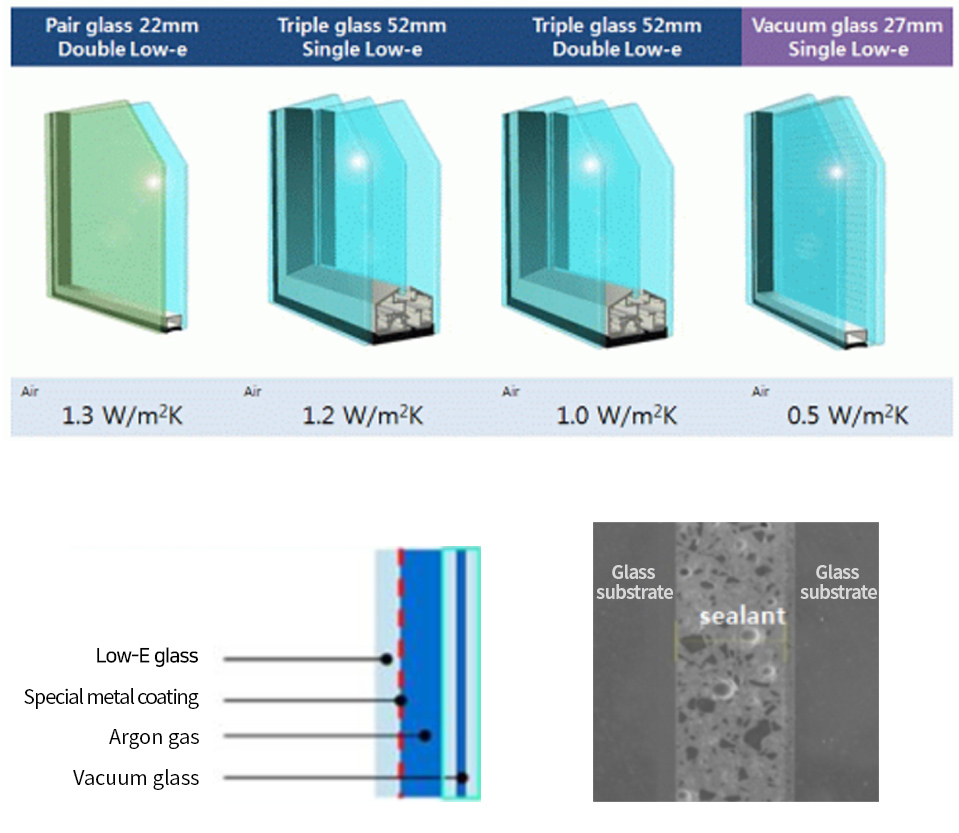

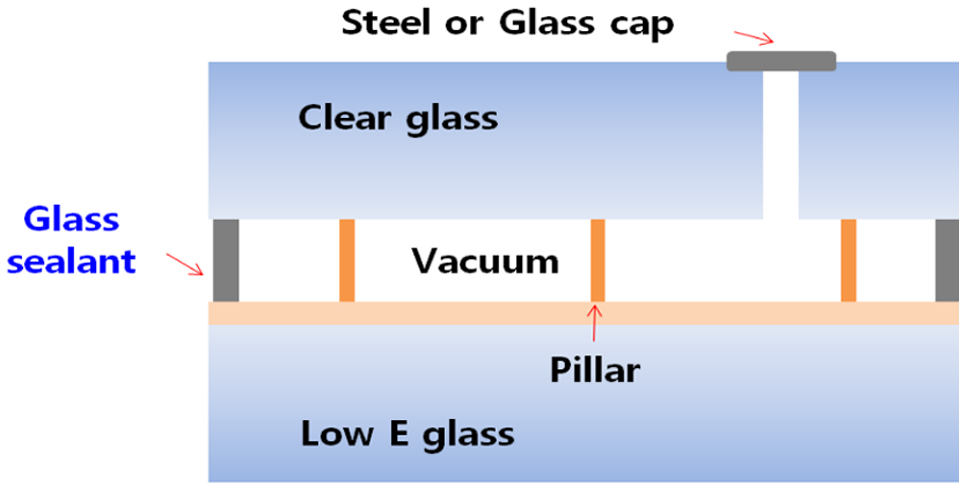

Structure of Vacuum glass
-
-
- ※ Requirements of glass frit
- - Excellent calcination density after calcination temperature
- - CTE similar to glass substrate
- - Low softening point and matching with filler
Glass Frit product specification
| Product No. |
Glass System | Properties | Firing Process | ||||
|---|---|---|---|---|---|---|---|
| Tg (℃) |
Tdsp (℃) |
CTE (x10-7/K) |
Density (g/cm3) |
Temp. (℃) |
Time (min) |
||
| LFS2024F | Bi2O3-B2O3-ZnO | 347 | 365 | 76 | 6.5 | 470~490 | >10 |
| LFS2051F | Bi2O3-B2O3-ZnO | 353 | 378 | 77 | 6.4 | 490~510 | >10 |
